ReadyNAS Duo v2 の Open-WRT化

概要

Open-WRT は 主にブロードバンドルーター向けの Linuxディストリビューション。
コミュニティの情報によればNETGEAR の NAS box ReadyNAS Duo v2 にもインストールできる。
ReadyNAS Duo v2は、製造から10年近く経過しており、すでに公式サポートも終了。
中のOSも相当古くなっているので、Open-WRTに入れ替えることで延命を図る。

イメージの入手

https://firmware-selector.openwrt.org/?version=SNAPSHOT&target=kirkwood%2Fgeneric&id=netgear_readynas-duo-v2

上のリンクからKERNELとSYSUPGRADEをダウンロードする。

KERNEL：openwrt-kirkwood-netgear_readynas-duo-v2-initramfs-uImage
SYSUPGRADE：openwrt-kirkwood-netgear_readynas-duo-v2-squashfs-sysupgrade.bin

私のあやふやな理解

KERNEL　必要最小限の内容だけのイメージ
SYSUPGRADE　KERNELで起動した上で、sysupgrade して使うフル版のイメージ

準備

  • ReadyNASとPCをシリアル接続できるようにしておく
  • FAT32でフォーマットしたUSBメモリに KERNELイメージを保存しておく

手順

ここにざっくり書かれている

Installation by USB + serial:
- Copy initramfs image to fat32 usb drive
- Connect pendrive to USB 2.0 front socket
- Connect serial console
- Stop booting in u-boot
- Do:

usb reset
setenv bootargs 'console=ttyS0,115200n8 earlyprintk'
setenv bootcmd 'nand read.e 0x1200000 0x200000 0x600000;bootm 0x1200000'
saveenv
fatload usb 0:1 0x1200000 openwrt-kirkwood-netgear_readynas-duo-v2-initramfs-uImage
bootm 0x1200000

- copy sysupgrade image via ssh.
- run sysupgrade

作業ログ

とりあえずインストール

手順の通りやってみる。

コンソールログ→ readynas_duo_v2_openwrt_install_log

とりあえずインストールは出来たようだが。。。

BusyBox v1.35.0 (2022-05-20 19:00:24 UTC) built-in shell (ash)

  _______                     ________        __
 |       |.-----.-----.-----.|  |  |  |.----.|  |_
 |   -   ||  _  |  -__|     ||  |  |  ||   _||   _|
 |_______||   __|_____|__|__||________||__|  |____|
          |__| W I R E L E S S   F R E E D O M
 -----------------------------------------------------
 OpenWrt SNAPSHOT, r19689-19ef3b54f4
 -----------------------------------------------------
root@OpenWrt:~# opkg update
Downloading https://downloads.openwrt.org/snapshots/targets/kirkwood/generic/packages/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/snapshots/targets/kirkwood/generic/packages/Packages.gz

Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/base/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/snapshots/packages/arm_xscale/base/Packages.gz

Downloading https://downloads.openwrt.org/snapshots/targets/kirkwood/generic/kmods/5.10.115-1-5e89d550415de5334e3e9ca9aff7b1a0/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/snapshots/targets/kirkwood/generic/kmods/5.10.115-1-5e89d550415de5334e3e9ca9aff7b1a0/Packages.gz

Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/luci/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/snapshots/packages/arm_xscale/luci/Packages.gz

Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/packages/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/snapshots/packages/arm_xscale/packages/Packages.gz

Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/routing/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/snapshots/packages/arm_xscale/routing/Packages.gz

Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/telephony/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/snapshots/packages/arm_xscale/telephony/Packages.gz

Collected errors:
 * opkg_download: Failed to download https://downloads.openwrt.org/snapshots/targets/kirkwood/generic/packages/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

 * opkg_download: Failed to download https://downloads.openwrt.org/snapshots/packages/arm_xscale/base/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

 * opkg_download: Failed to download https://downloads.openwrt.org/snapshots/targets/kirkwood/generic/kmods/5.10.115-1-5e89d550415de5334e3e9ca9aff7b1a0/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

 * opkg_download: Failed to download https://downloads.openwrt.org/snapshots/packages/arm_xscale/luci/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

 * opkg_download: Failed to download https://downloads.openwrt.org/snapshots/packages/arm_xscale/packages/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

 * opkg_download: Failed to download https://downloads.openwrt.org/snapshots/packages/arm_xscale/routing/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

 * opkg_download: Failed to download https://downloads.openwrt.org/snapshots/packages/arm_xscale/telephony/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

root@OpenWrt:~#

opkgコマンドがエラー
WebUIのLuciがインストールできない。
これではインストールできたはよいが、まるで何もできないぞ・・・

ネットワークに問題ある？

ping打ってみる。

opwnwrt.org　NG
google.com　NG
yahoo.co.jp　OK

IPv6のアドレスがダメってことか・・・:-?

root@OpenWrt:~# ping downloads.openwrt.org
PING downloads.openwrt.org (2a01:4f8:251:321::2): 56 data bytes
^C
--- downloads.openwrt.org ping statistics ---
40 packets transmitted, 0 packets received, 100% packet loss
root@OpenWrt:~# ping google.com
PING google.com (2404:6800:4004:81e::200e): 56 data bytes
^C
--- google.com ping statistics ---
10 packets transmitted, 0 packets received, 100% packet loss
root@OpenWrt:~# ping yahoo.co.jp
PING yahoo.co.jp (183.79.219.252): 56 data bytes
64 bytes from 183.79.219.252: seq=0 ttl=49 time=15.999 ms
64 bytes from 183.79.219.252: seq=1 ttl=49 time=16.138 ms
64 bytes from 183.79.219.252: seq=2 ttl=49 time=15.601 ms
64 bytes from 183.79.219.252: seq=3 ttl=49 time=15.639 ms
^C
--- yahoo.co.jp ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 15.601/15.844/16.138 ms
root@OpenWrt:~#

あれ、でも他のPCからping打つと IPv4だよ・・・:?:
Windows10のWSL2のUbuntuからpingを打ったら

なんで OpenWrtなRedyNASは IPv6 になってるんだろ:-/

Luciのインストールに一苦労（opkg が使えない）

問題はIPv6

とりあえず Open-Wrt はインストールされ、ssh接続できるようにはなった。

Webの設定画面 luci をインストールしようとしたが opkg コマンドがエラーになる。
これでは、何もパッケージがインストールできない。

はて、、、

どうやら ipv6 で接続しようとして、接続できないでいるようだ。
localhost は ipv6 でもpingが通るけど、外部のサイトは ipv6 だと pingが通らない。

接続できない原因が、うちのインターネット環境（フレッツ、OCN）にあるのか、ブロードバンドルーター（結構古いNEC ATerm）にあるのか、その両方のせいなのか、設定が悪いだけなのか、ちょっと分からない。

《追記》
我が家のインターネット環境ではIPv6接続ができていない（面倒くさくて設定していない）ことが判明した。

ipv4 なら問題なく接続できているので、安直に考えて ipv6 を無効にして ipv4で接続するようにしたい。



BusyBox v1.35.0 (2022-05-20 19:00:24 UTC) built-in shell (ash)

  _______                     ________        __
 |       |.-----.-----.-----.|  |  |  |.----.|  |_
 |   -   ||  _  |  -__|     ||  |  |  ||   _||   _|
 |_______||   __|_____|__|__||________||__|  |____|
          |__| W I R E L E S S   F R E E D O M
 -----------------------------------------------------
 OpenWrt SNAPSHOT, r19689-19ef3b54f4
 -----------------------------------------------------
root@OpenWrt:~# ping google.com
PING google.com (2404:6800:4004:827::200e): 56 data bytes
^C
--- google.com ping statistics ---
3 packets transmitted, 0 packets received, 100% packet loss
root@OpenWrt:~#
root@OpenWrt:~# ping -4 google.com
PING google.com (142.250.207.14): 56 data bytes
64 bytes from 142.250.207.14: seq=0 ttl=115 time=8.831 ms
64 bytes from 142.250.207.14: seq=1 ttl=115 time=7.447 ms
64 bytes from 142.250.207.14: seq=2 ttl=115 time=7.366 ms
64 bytes from 142.250.207.14: seq=3 ttl=115 time=7.381 ms
^C
--- google.com ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 7.366/7.756/8.831 ms
root@OpenWrt:~#
root@OpenWrt:~# ping  openwrt.org
PING openwrt.org (2a03:b0c0:3:d0::1af1:1): 56 data bytes
^C
--- openwrt.org ping statistics ---
6 packets transmitted, 0 packets received, 100% packet loss

root@OpenWrt:~# ping -4 openwrt.org
PING openwrt.org (139.59.209.225): 56 data bytes
64 bytes from 139.59.209.225: seq=0 ttl=47 time=248.351 ms
64 bytes from 139.59.209.225: seq=1 ttl=47 time=247.793 ms
64 bytes from 139.59.209.225: seq=2 ttl=47 time=247.962 ms
64 bytes from 139.59.209.225: seq=3 ttl=47 time=248.752 ms
^F64 bytes from 139.59.209.225: seq=4 ttl=47 time=247.695 ms
64 bytes from 139.59.209.225: seq=5 ttl=47 time=247.933 ms
^C
--- openwrt.org ping statistics ---
6 packets transmitted, 6 packets received, 0% packet loss
round-trip min/avg/max = 247.695/248.081/248.752 ms
root@OpenWrt:~# ping localhost
PING localhost (::1): 56 data bytes
64 bytes from ::1: seq=0 ttl=64 time=0.191 ms
64 bytes from ::1: seq=1 ttl=64 time=0.154 ms
64 bytes from ::1: seq=2 ttl=64 time=0.145 ms
64 bytes from ::1: seq=3 ttl=64 time=0.143 ms
^C
--- localhost ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 0.143/0.158/0.191 ms
root@OpenWrt:~# ping -4 localhost
PING localhost (127.0.0.1): 56 data bytes
64 bytes from 127.0.0.1: seq=0 ttl=64 time=0.158 ms
64 bytes from 127.0.0.1: seq=1 ttl=64 time=0.130 ms
64 bytes from 127.0.0.1: seq=2 ttl=64 time=0.123 ms
64 bytes from 127.0.0.1: seq=3 ttl=64 time=0.120 ms
64 bytes from 127.0.0.1: seq=4 ttl=64 time=0.117 ms
^C
--- localhost ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.117/0.129/0.158 ms
root@OpenWrt:~#

下をやって再起動してみたけど変わらなかった。

root@OpenWrt:~# set 'network.wan.ipv6=off'
root@OpenWrt:~# set 'network.lan.ipv6=off'
root@OpenWrt:~# uci set 'dhcp.lan.dhcpv6=disabled'
root@OpenWrt:~# /etc/init.d/odhcpd disable
root@OpenWrt:~# uci commit
root@OpenWrt:~#
BusyBox v1.35.0 (2022-05-20 19:00:24 UTC) built-in shell (ash)

  _______                     ________        __
 |       |.-----.-----.-----.|  |  |  |.----.|  |_
 |   -   ||  _  |  -__|     ||  |  |  ||   _||   _|
 |_______||   __|_____|__|__||________||__|  |____|
          |__| W I R E L E S S   F R E E D O M
 -----------------------------------------------------
 OpenWrt SNAPSHOT, r19689-19ef3b54f4
 -----------------------------------------------------
root@OpenWrt:~#
root@OpenWrt:~# ping openwrt.org
PING openwrt.org (2a03:b0c0:3:d0::1af1:1): 56 data bytes
^C
--- openwrt.org ping statistics ---
9 packets transmitted, 0 packets received, 100% packet loss
root@OpenWrt:~#

こちら OpenWrt Disable IPV6 を参考にやってみたが、やっぱりダメ。

シリアルコンソールから(ネットワーク越しのSSH接続ではなく)

BusyBox v1.35.0 (2022-05-20 19:00:24 UTC) built-in shell (ash)

  _______                     ________        __
 |       |.-----.-----.-----.|  |  |  |.----.|  |_
 |   -   ||  _  |  -__|     ||  |  |  ||   _||   _|
 |_______||   __|_____|__|__||________||__|  |____|
          |__| W I R E L E S S   F R E E D O M
 -----------------------------------------------------
 OpenWrt SNAPSHOT, r19689-19ef3b54f4
 -----------------------------------------------------
root@OpenWrt:/# uci set 'network.lan.ipv6=0'
root@OpenWrt:/# uci set 'network.wan.ipv6=0'
uci: Invalid argument
root@OpenWrt:/# uci set 'network.wan.ipv6=0'
uci: Invalid argument
root@OpenWrt:/# uci set 'dhcp.lan.dhcpv6=disabled'
root@OpenWrt:/# /etc/init.d/odhcpd disable
root@OpenWrt:/# uci commit
root@OpenWrt:/# uci -q delete dhcp.lan.dhcpv6
root@OpenWrt:/# uci -q delete dhcp.lan.ra
root@OpenWrt:/# uci commit dhcp
root@OpenWrt:/# /etc/init.d/odhcpd restart
Command failed: Not found
root@OpenWrt:/# /etc/init.d/odhcpd restart
root@OpenWrt:/# /etc/init.d/odhcpd status
running
root@OpenWrt:/# uci set network.lan.delegate="0"
root@OpenWrt:/# uci commit network
root@OpenWrt:/# /etc/init.d/network restart
[  440.033405] br-lan: port 1(eth0) entered disabled state
[  440.055864] device eth0 left promiscuous mode
[  440.060348] br-lan: port 1(eth0) entered disabled state
root@OpenWrt:/# [  441.450176] br-lan: port 1(eth0) entered blocking state
[  441.455429] br-lan: port 1(eth0) entered disabled state
[  441.460886] device eth0 entered promiscuous mode
[  443.763367] mv643xx_eth_port mv643xx_eth_port.0 eth0: link up, 1000 Mb/s, full duplex, flow control enabled
[  443.773205] br-lan: port 1(eth0) entered blocking state
[  443.778475] br-lan: port 1(eth0) entered forwarding state
[  443.785528] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready

root@OpenWrt:/# /etc/init.d/odhcpd disable
root@OpenWrt:/# /etc/init.d/odhcpd stop
root@OpenWrt:/#
root@OpenWrt:/# uci -q delete network.globals.ula_prefix
root@OpenWrt:/# uci commit network
root@OpenWrt:/# /etc/init.d/network restart
[  535.133777] br-lan: port 1(eth0) entered disabled state
[  535.139343] device eth0 left promiscuous mode
[  535.143803] br-lan: port 1(eth0) entered disabled state
root@OpenWrt:/# [  536.562613] br-lan: port 1(eth0) entered blocking state
[  536.567870] br-lan: port 1(eth0) entered disabled state
[  536.573325] device eth0 entered promiscuous mode
[  538.885542] mv643xx_eth_port mv643xx_eth_port.0 eth0: link up, 1000 Mb/s, full duplex, flow control enabled
[  538.895377] br-lan: port 1(eth0) entered blocking state
[  538.900645] br-lan: port 1(eth0) entered forwarding state
[  538.907335] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready

root@OpenWrt:/#

uci set 'network.wan.ipv6=0' のところで uci: Invalid argument と言われてしまうのが気にかかる。
network再起動しても IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready なんて言ってるので、IPv6無効にできていないんだろうなあ・・・:-?

root@OpenWrt:/# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq master br-lan state UP qlen 1000
    link/ether 2c:b0:5d:bf:0d:35 brd ff:ff:ff:ff:ff:ff
5: br-lan: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
    link/ether 2c:b0:5d:bf:0d:35 brd ff:ff:ff:ff:ff:ff
    inet 192.168.10.11/24 brd 192.168.10.255 scope global br-lan
       valid_lft forever preferred_lft forever
    inet6 2001:c90:8440:4e89:2eb0:5dff:febf:d35/64 scope global dynamic noprefixroute
       valid_lft 2591957sec preferred_lft 604757sec
    inet6 fe80::2eb0:5dff:febf:d35/64 scope link
       valid_lft forever preferred_lft forever
root@OpenWrt:/# ip -6 a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 state UNKNOWN qlen 1000
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
5: br-lan: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UP qlen 1000
    inet6 2001:c90:8440:4e89:2eb0:5dff:febf:d35/64 scope global dynamic noprefixroute
       valid_lft 2591926sec preferred_lft 604726sec
    inet6 fe80::2eb0:5dff:febf:d35/64 scope link
       valid_lft forever preferred_lft forever
root@OpenWrt:/#

br-lanに inet6 ですと。

やっとIPv6を無効にできた

「OpenWrtでIPv6を無効にする」方法をGoogle先生に訊きまわったが、どうもうまくいかない。
Ubuntuの記事だが、/etc/sysctl.conf でIPv6を無効にする方法を ここ で見つけた。OpenWrtはDebian系だとどこかで見たたような気がする。UbuntuもDebian系なので使えるかもしれない。

root@OpenWrt:/# echo net.ipv6.conf.all.disable_ipv6=1 >> /etc/sysctl.d/60-ipv6-disable.conf
root@OpenWrt:/# echo net.ipv6.conf.default.disable_ipv6=1 >> /etc/sysctl.d/60-ipv6-disable.conf
root@OpenWrt:/# echo net.ipv6.conf.lo.disable_ipv6=1 >> /etc/sysctl.d/60-ipv6-disable.conf
root@OpenWrt:/# conf.default.disable_ipv6=1

が、OpenWRTには systemctlコマンドがなかった:-(
ええい、再起動してしまえ・・・

BusyBox v1.35.0 (2022-05-20 19:00:24 UTC) built-in shell (ash)

  _______                     ________        __
 |       |.-----.-----.-----.|  |  |  |.----.|  |_
 |   -   ||  _  |  -__|     ||  |  |  ||   _||   _|
 |_______||   __|_____|__|__||________||__|  |____|
          |__| W I R E L E S S   F R E E D O M
 -----------------------------------------------------
 OpenWrt SNAPSHOT, r19689-19ef3b54f4
 -----------------------------------------------------
root@OpenWrt:/#
root@OpenWrt:/# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq master br-lan state UP qlen 1000
    link/ether 2c:b0:5d:bf:0d:35 brd ff:ff:ff:ff:ff:ff
3: br-lan: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
    link/ether 2c:b0:5d:bf:0d:35 brd ff:ff:ff:ff:ff:ff
    inet 192.168.10.11/24 brd 192.168.10.255 scope global br-lan
       valid_lft forever preferred_lft forever
root@OpenWrt:/# ping openwrt.org
PING openwrt.org (139.59.209.225): 56 data bytes
64 bytes from 139.59.209.225: seq=0 ttl=47 time=249.142 ms
64 bytes from 139.59.209.225: seq=1 ttl=47 time=247.421 ms
64 bytes from 139.59.209.225: seq=2 ttl=47 time=247.429 ms
64 bytes from 139.59.209.225: seq=3 ttl=47 time=247.544 ms
^C
--- openwrt.org ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 247.421/247.884/249.142 ms
root@OpenWrt:/#

おっ、IPv4になってる。
なんかいろいろ無駄なことしたかもだけど、結果オーライということにしますか:-D

ようやくluciのインストールができそう

IPv6を無効にしたことで、IPv4での接続となり、opkgコマンドが無事使えるようになった。

opkg update して、、、

root@OpenWrt:/# opkg update
Downloading https://downloads.openwrt.org/snapshots/targets/kirkwood/generic/packages/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_core
Downloading https://downloads.openwrt.org/snapshots/targets/kirkwood/generic/packages/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/base/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_base
Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/base/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/snapshots/targets/kirkwood/generic/kmods/5.10.115-1-5e89d550415de5334e3e9ca9aff7b1a0/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_kmods
Downloading https://downloads.openwrt.org/snapshots/targets/kirkwood/generic/kmods/5.10.115-1-5e89d550415de5334e3e9ca9aff7b1a0/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/luci/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_luci
Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/luci/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/packages/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_packages
Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/packages/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/routing/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_routing
Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/routing/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/telephony/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_telephony
Downloading https://downloads.openwrt.org/snapshots/packages/arm_xscale/telephony/Packages.sig
Signature check passed.
root@OpenWrt:/#

luciをインストール

root@OpenWrt:/# opkg install luci luci-ssl luci-i18n-base-ja
root@OpenWrt:/# service uhttpd restart
root@OpenWrt:/# service uhttpd enable

luci 起動に成功

ブラウザから ReadyNasのIPアドレスに接続。 やっとここまでたどり着いた^_^

OpenWRT化したReadyNAS Duo v2起動時のコンソールログ → readynas_duo_v2_openwrt_startup_log

WebUIでのネットワーク設定変更に失敗

現状ではブロードバンドルーター(NEC Aterm)のDHCPサーバー機能でIPアドレスをもらっていた。

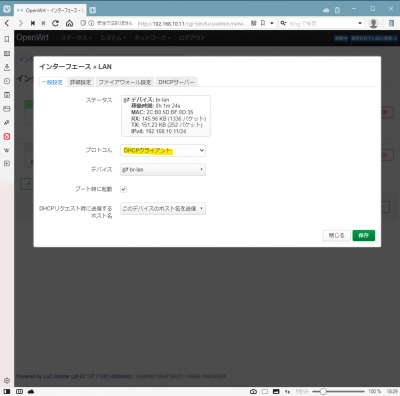

NASで運用するには固定IPの方がよいため、WebUIから固定IPへ変更しようとした。

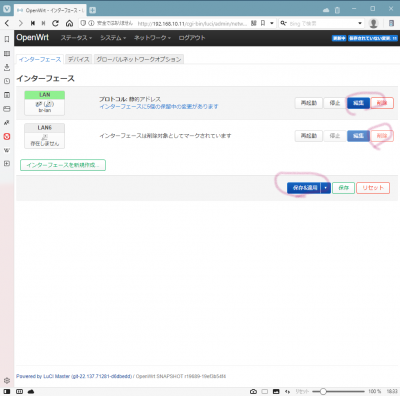

しかし、失敗したらしく、WebUIにも、SSHでも接続できなくなってしまった。











nas/readynas_duo_v2_openwrt.txt · 最終更新: 2022/05/22 21:09 by nipa28
